Air Float Packing Machine, Air Float Oblique Push Packing Machine, Lightweight Gypsum Automated Packaging Machine, High-Precision Spiral Powder Bagging Equipment.

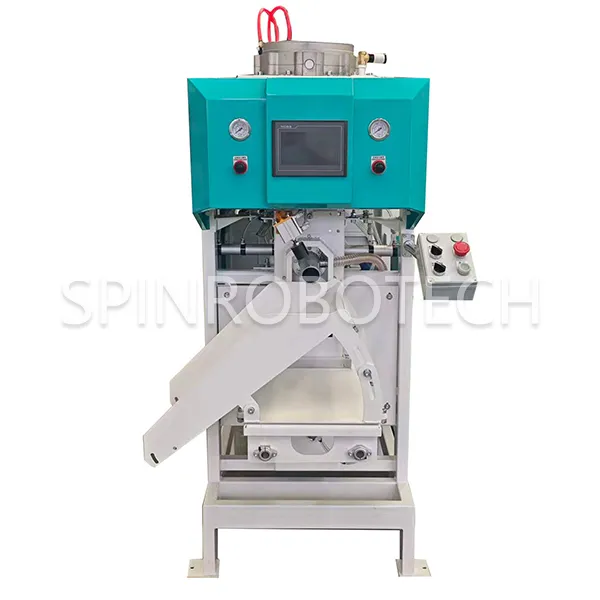

This SPIN air float packing machine is a professional packaging equipment developed for lightweight gypsum and other dry powder materials. Combining “air float feeding” and “oblique push bag clamping” principles, it uses a top hopper for feeding, alongside side control boxes and dual pressure gauges (for precise pneumatic monitoring), to achieve lossless material conveyance and quantitative packaging. The central touch screen displays real-time weight, ensuring precision in every packaging cycle.
Key Features
-
Efficient Air Float & Oblique Push Tech:
Utilizes air float technology to greatly reduce internal friction at the discharge port. The unique oblique push bag clamping mechanism securely opens the packaging bag. Ensure no material leakage during filling, making it particularly suitable for lightweight gypsum and other low-density, dusty materials.
-
High Precision Weighing System:
Equipped with a high-resolution color touch screen and an integrated intelligent weighing module for fast, fixed-value weighing. The intuitive interface displays real-time weight readings and allows easy parameter settings.
-
Pneumatic Control & Safety:
The device features dual pneumatic pressure gauges (left and right) for real-time monitoring of the air supply status. The independent control box on the right includes multi-function buttons and a prominent red Emergency Stop button, ensuring operational safety and machine protection.
-
Robust & Easy Maintenance:
The main body uses a high-strength metal frame with a corrosion-resistant white and teal powder-coated finish. Its compact structure includes pre-drilled mounting holes at the base for easy floor installation; the modular design simplifies daily cleaning and parts replacement.
Technical Specifications
| Category | Parameter Item | Specification / Configuration |
|---|---|---|
| Basic Information | Equipment Model | BQC-2000 Air Float |
| Discharge Port Diameter | Φ57 (Standard) | |
| Performance Parameters | Error Margin | ≤±250 g |
| Packaging & Sealing Speed | 3~5 bags/min (Approx. 180~300 bags/hour) | |
| Output Capacity | 3~6 tons/hour (20~50kg/bag) | |
| Compressed Air | 0.5~0.75 MPa, 60 m³/h | |
| Dust Extraction Air Volume | 1000 m³/h, Air pressure 0.01~0.03 bar (adjustable) | |
| Core Configuration | Control System | Kunlun Tongtai Touch Screen + Schneider Components + Custom Controller |
| Sensor | Tianguang Bellows Sensor | |
| Pneumatic Components | Shengda Pneumatic System | |
| Sealing Technology | Ultrasonic Heat Sealing Technology | |
| Pallet Lifting Mechanism | Electric Lifting, Stroke 300~600mm | |
| Return Material Handling System | Automatic Recovery Device | |
| Energy Configuration | Rated Voltage | 220V |
| Rated Power | 2000W | |
| Application Scope | Packaging Materials | Plastering mortar, tile adhesive, self-leveling mortar, and other construction auxiliary materials |
Application Scenarios
This machine is widely applied in the building materials, chemical, and environmental sectors. It performs outstandingly especially in the production and packaging lines for Lightweight Gypsum. The oblique push design effectively solves bridging and bulking issues typical of lightweight materials, making upgrade solution for modern powder packaging workshops.
