Why Bagged Products Need Dedicated Palletizers?

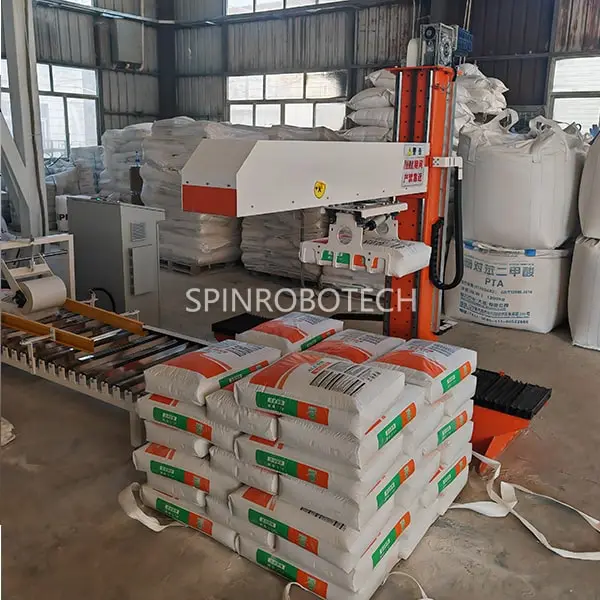

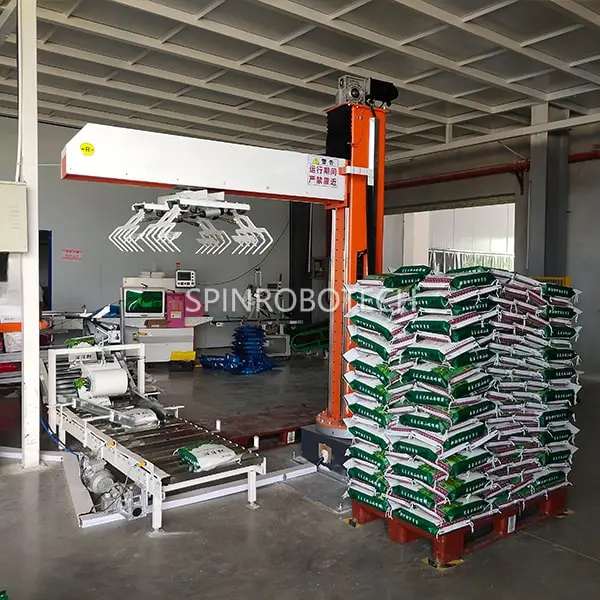

Automated Bag Palletizer Solutions for Bagged Products: Precision Stacking, Zero Damage.
-
Zero-Bag-Damage Guarantee: Vacuum + mechanical combo (vs. 12% industry average)
-
Dynamic Alignment: Real-time bag position correction
-
Space Optimization: Compact design (10m²), retrofittable to existing lines
Key Benefits:
–Bag-Specific Grippers: Adaptive arms for woven bags/FIBCs (10-50kg)
–Rapid Changeover: <5 min product switching, hybrid pallet patterns
–All-Environment Operation: IP66 rating for dust/moisture resistance
–ROI <14 Months: Replace 4 workers per shift, 24/7 operation
Technical Specifications of Bag Palletizer
| Power supply/Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min, total air reservoir capacity >600 L |
| Dimensions | Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Palletizing Height Limit | ≤1600mm (grippers/fixtures) | ≤1800mm (suction cups) |
| Applicable Scope | 10-50kg product packaging: bags, cartons, sheets, blocks, or similar products |
| Power Consumption | Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW |
| Pallet reference | ≤1400×1600mm (including actual stack pattern) |
| Customizable item | Cross arm length, column height, base length, special grippers |
| follow-on upgrade | Vision recognition, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system |
(The above are standard sizes, can be customized)
Start Your Customized Industrial Palletizing Equipment Journey
–What We Need From You:
-
3-5 samples of your typical packaging
-
Target throughput (pallets/hour)
-
Biggest pain point with current methods
Industry Applications of Palletizing Robots:
- Food & Beverage Industry: Our robotic arm palletizer efficiently handles cases, bottles, cans, and frozen goods while meeting strict hygiene standards.
- Pharmaceutical & Healthcare: Precision for medicine cartons & raw materials, medical devices, sterile packaging, fully GMP-compliant.
- Chemicals & Industrial Products: Stable for bags (powders, granules), drums, pails, and heavy containers, adaptable to various weights and formats.
- E-Commerce & Logistics Warehousing: Automated palletizing robot for Mixed-SKU palletizing, parcel sorting, warehouse automation.
- Building Materials & Heavy Manufacturing: Heavy-duty palletizers for cement bags, tiles, lumber, pipes, and construction materials.
- Automotive & Electronics: High-Speed palletizer for Engine parts, tires, fragile electronics, and components.
