Battery Palletizing Machine, High-efficiency Dual-station Rotary Column Palletizer for 20KG Battery Pack

Doubled Capacity: Dual-station parallel gripping boosts production cycle efficiency by 50%–100%.
Minimal Footprint: Column-rotating design is ultra-compact, allowing flush installation right at the end of the conveyor line.
Heavy-Load Stability: High-rigidity reinforced column with servo control ensures steady operation and ±1mm stacking accuracy.
Flexible Mixing: Supports dual-channel or mixed-specification battery box palletizing on a single unit.
One-Click Changeover: PLC smart control and touchscreen interface enable instant recipe switching without manual mechanical adjustments.
Safety & Anti-Collision: Equipped with a bellows dust cover and soft-landing algorithm to effectively prevent battery damage and impact.

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

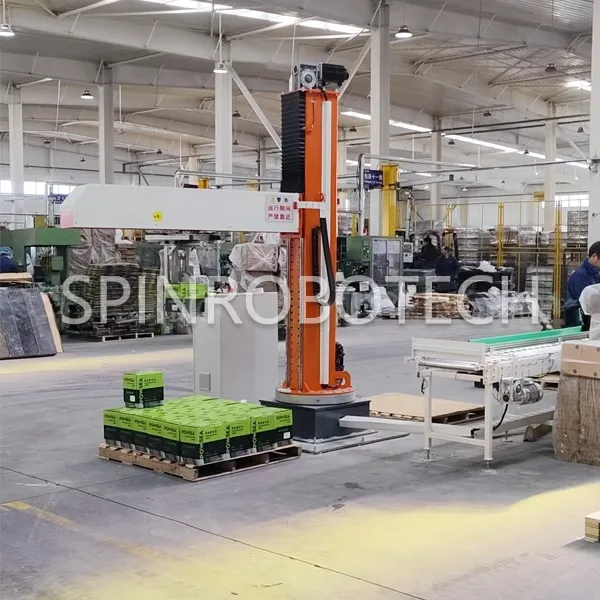

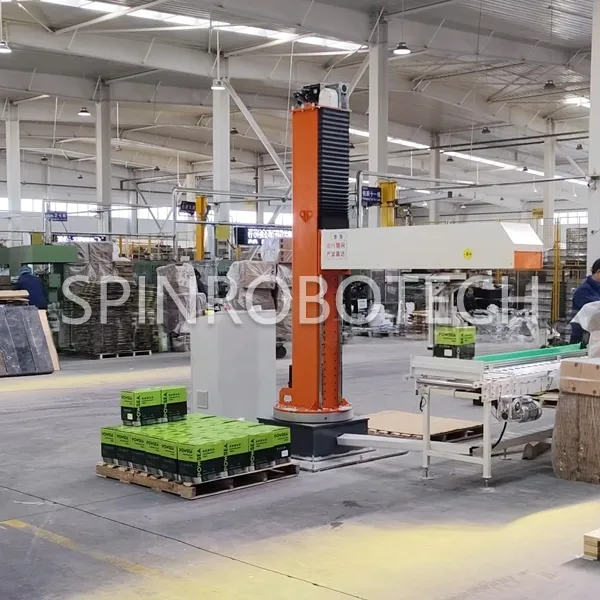

Battery Palletizing Machine, customized dual-station column-type rotary palletizing machine, equipped with custom gripper for 20kg battery pack.

SPIN’s Column rotating palletizer: Dual-station, continuous operation, no speed loss.

To see the palletizer in action, click here to watch our YouTube video.

Doubled Capacity: Dual-station parallel gripping boosts production cycle efficiency by 50%–100%.
Minimal Footprint: Column-rotating design is ultra-compact, allowing flush installation right at the end of the conveyor line.
Heavy-Load Stability: High-rigidity reinforced column with servo control ensures steady operation and ±1mm stacking accuracy.
Flexible Mixing: Supports dual-channel or mixed-specification battery box palletizing on a single unit.
One-Click Changeover: PLC smart control and touchscreen interface enable instant recipe switching without manual mechanical adjustments.
Safety & Anti-Collision: Equipped with a bellows dust cover and soft-landing algorithm to effectively prevent battery damage and impact.

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing Height Limit	≤1600mm (grippers/fixtures) ≤1800mm (suction cups)
Applicable Scope	10-50kg product Including: bags, cartons, sheets, blocks, or similar products
Palletizing efficiency	400-500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision recognition, pallet conveyor line ton bag lifting reciprocating mechanism, anti-collapse linkage system

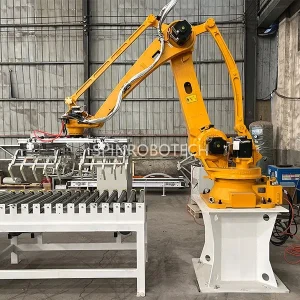

We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Takes up less floor space than a robotic arm, simple to fix, and flexible in layout.
Operates via a straight-arm rotation method, offering large coverage; safety fences and light curtains are required to improve safety.
Dual-station design: no efficiency or speed requirements for personnel handling full stacks or placing empty pallets. Simply remove the full stack and replace with an empty pallet on the other side before the stack is completed.
Continuous operation, alternating left/right or right/left with no actual loss of speed. After manually placing empty pallets and pre‑ordering a new stack position, the safety factor is extremely high.
Slightly higher initial investment, but significant potential for future output increase (for 25 kg bagged products with air, max speed 450 cycles/hour; for 25 kg bagged products without air, max speed 500 cycles/hour).

Typical Applications:

Suitable for medium-to-low-speed palletizing production lines with a fan-shaped working area, compact space, and high cycle time requirements. Examples include palletizing bottled water, boxed beverages, food boxes, etc.

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
