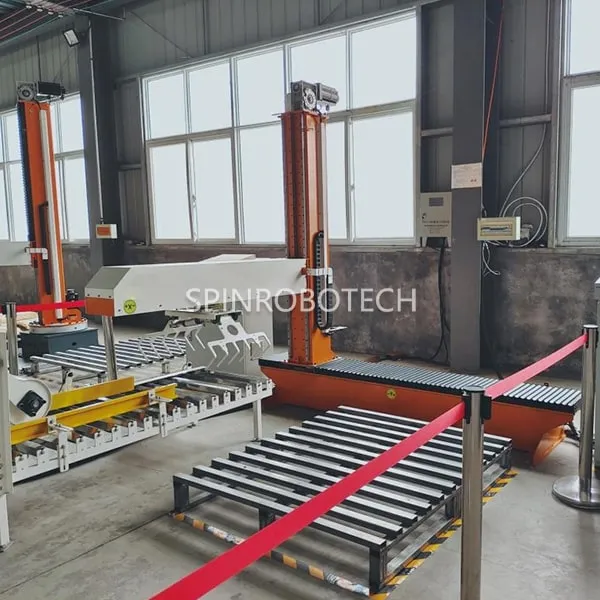

Column Swing Palletizing Robot MR-180D, Custom Dual-Gripper Palletizing Robot
MR-180D Column Swing Palletizing is applicable for 10-80kg product packaging: bags, cartons, sheets, blocks, or similar products.
–Box Case Palletizers for Cardboard boxes, plastic totes, retail-ready packaging.
–Bag Palletizing Robots for Woven poly bags, paper sacks, bulk pouches (food/chemicals).
–Drum Barrel Palletizer for Steel plastic drums, IBC totes, industrial pails.
–Specialty Packaging Palletizers: Can palletizer, tire stacking system, irregular shape palletizing.
| Power supply/Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min
Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min, total air reservoir capacity >600 L |
| Dimensions | Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Palletizing Height Limit | ≤1600mm (grippers/fixtures) | ≤1800mm (suction cups) |
| Applicable Scope | Dual-Item Simultaneous Handling for 10-25kg Products; Single-Item Handling for 50-80kg Products |
| Palletizing efficiency | 300-450 cycles/hour (theoretical maximum) ，in Dual-Item Simultaneous Handling mode, achieving 600-800 units/hour |
| Power Consumption | Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW |
| Pallet reference | ≤1400×1600mm (including actual stack pattern), bag length ≤750mm |
| Customizable item | Cross arm length, column height, base length, special grippers |
| follow-on upgrade | Vision recognition, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system |
(The above are standard sizes, can be customized)

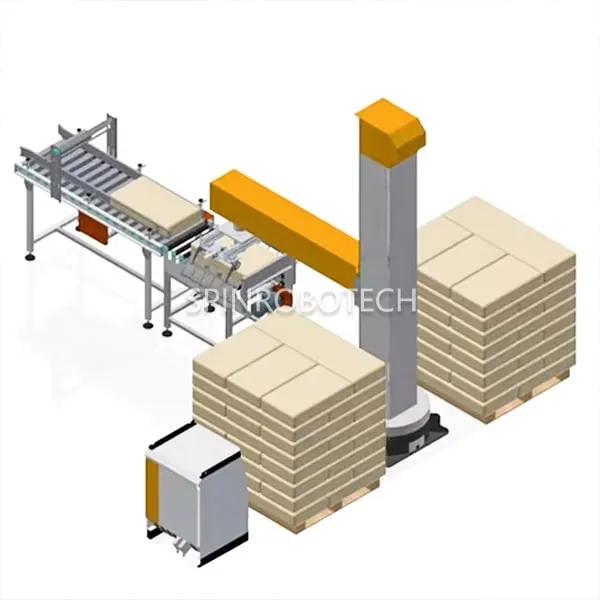

Column Swing Palletizing Robot is widely used in Every Industry: Food & Beverage, Pharmaceutical & Healthcare, Chemicals & Industrial Products, E-Commerce & Logistics Warehousing, Building Materials & Heavy Manufacturing, Automotive & Electronics
–Food & Beverage Industry: Our High-Performance Palletizing Robot efficiently handles cases, bottles, cans, and frozen goods while meeting strict hygiene standards.
–Pharmaceutical & Healthcare: Precision palletizer robot for medicine cartons & raw materials, medical devices, sterile packaging, fully GMP-compliant.
–Chemicals & Industrial Products: Stable palletizer robot for bags (powders, granules), drums, pails, and heavy containers, adaptable to various weights and formats.
–E-Commerce & Logistics Warehousing: Automated Stacking robot for Mixed-SKU palletizing, parcel sorting, warehouse automation.
–Building Materials & Heavy Manufacturing: Heavy-duty Palletizing Robot for cement bags, tiles, lumber, pipes, and construction materials.
–Automotive & Electronics: High-Speed palletizer System for Engine parts, tires, fragile electronics, and components.
Start Your Custom Palletizer Journey
–What We Need From You:
-
3-5 samples of your typical packaging
-
Target throughput (pallets/hour)
-
Biggest pain point with current methods
