Full Layer Palletizer, Dual-station Column Rotary Palletizing Machine, Equipped with Custom Integrated Gripper, for 2KG Boxed Instant Noodles, with CE certification. SPIN's Column rotating palletizer: Dual-station, continuous operation, no speed loss.

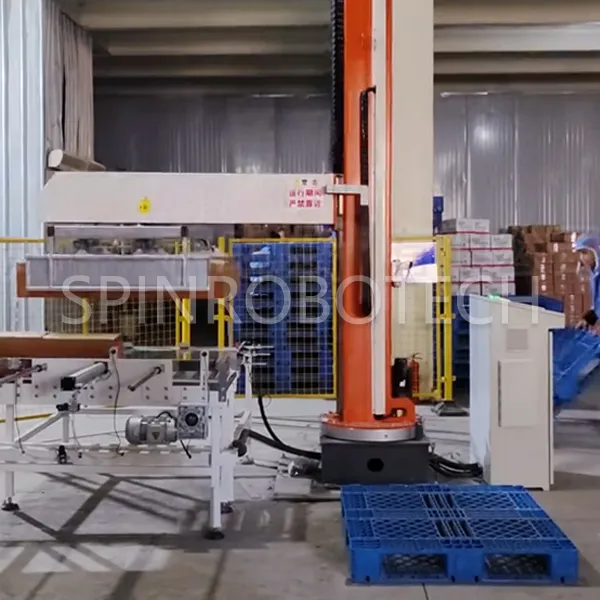

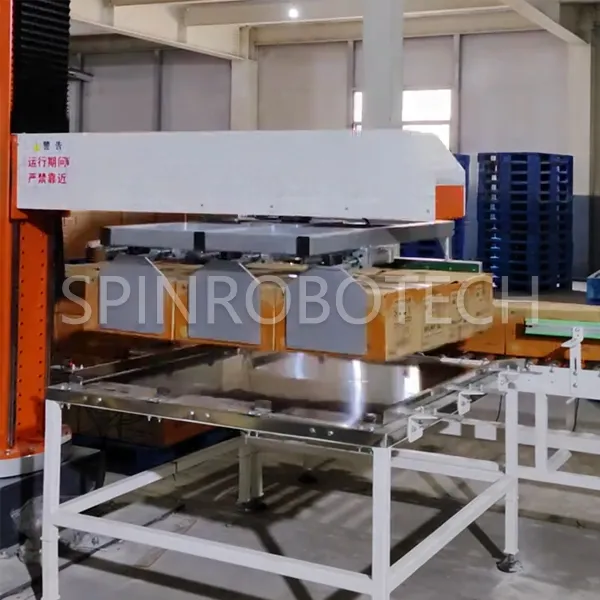

The standout highlight of Column-type full layer palletizer is its full-layer pick-up capability using a minimalist column structure and vacuum suction, delivering the highest palletizing efficiency at the lowest cost and smallest footprint.

1. High Efficiency
Moves a full layer at once, vastly outperforming single-case picking.

2. Stable Pallets
Pre-formed and placed as a whole, ensuring a tight, non-collapsing pattern.

3. Space Saving
Column structure offers a minimal footprint with a tall stacking height.

4. Easy Maintenance
Simpler mechanics lead to lower energy use and fewer faults than robotic arms.

5. High Flexibility
Simple gripper swaps or parameter changes adapt it to cartons, bags, and bottles.

6. Cost-Effective & Safe
Costs far less than same-load robots while fully replacing heavy manual labor.

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Inquiry

Description

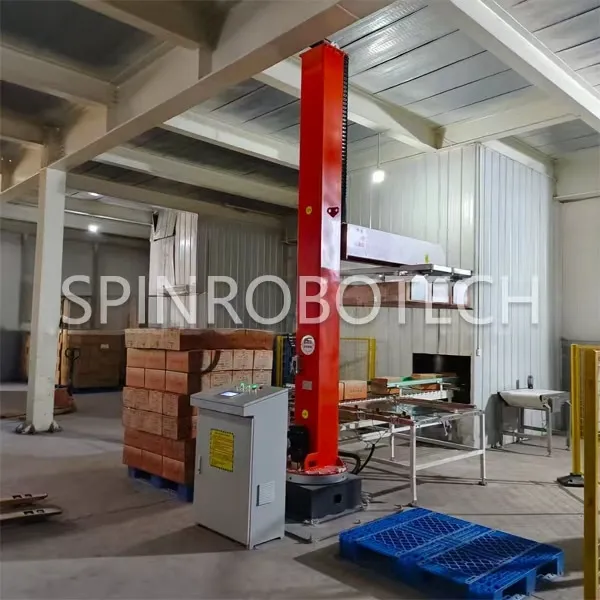

Column-type Full Layer Palletizer, Dual-station Column Rotary Palletizing Machine, Equipped with Custom Integrated Gripper, for 2KG Boxed Instant Noodles, with CE certification.

Product: 2KG boxed Instant Noodles

Output: 1800 boxes per hour

Stacking Pattern: 12 boxes per layer, 8 layers in total.

SPIN’s Column rotating palletizer: Dual-station, continuous operation, no speed loss.

Core Features of Column-type Full Layer Palletizer

1. Efficiency & Throughput

Picks up an entire layer in a single motion, eliminating the need for frequent back-and-forth movements like single-case robots, greatly boosting throughput for high-speed production lines.

2. Stacking Integrity & Stability

Paired with a layer-forming unit, the boxes are pre-arranged and placed together, ensuring perfectly tight, uniform, and compact pallet patterns that prevent product collapse during transport.

3. Space Utilization

The column/gantry structure has a minimal footprint while allowing high lifting heights, making it ideal for facilities with limited floor space or tall storage areas.

4. Energy Consumption & Maintenance

Driven by servo motors with simple Cartesian motion, it consumes less energy. Compared to complex 6-axis arms, its simpler structure lowers failure rates, making daily maintenance and debugging much easier and cheaper.

5. Flexibility & Compatibility

By simply swapping the vacuum gripper or adjusting forming parameters, it flexibly handles various sizes and materials like cartons, woven bags, or plastic bottles, offering versatile multi-purpose use.

6. Cost-Effectiveness

For standard carton or bag palletizing tasks, the procurement and integration costs are typically much lower than 6-axis robots of the same payload, resulting in a higher Return on Investment (ROI).

7. Labor Safety

Fully replaces high-intensity, repetitive manual heavy lifting, avoiding injury risks from fatigue while significantly reducing packaging damage caused by manual handling.

Standard Parameters of Model MR-180

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing Height Limit	≤1600mm (grippers/fixtures) ≤1800mm (suction cups)
Applicable Scope	10-50kg product Including: bags, cartons, sheets, blocks, or similar products
Palletizing efficiency	400-500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision recognition, pallet conveyor line ton bag lifting reciprocating mechanism, anti-collapse linkage system

We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Features of Dual-station Rotary Palletizer:

Takes up less floor space than a robotic arm, simple to fix, and flexible in layout.
Operates via a straight-arm rotation method, offering large coverage; safety fences and light curtains are required to improve safety.
Dual-station design: no efficiency or speed requirements for personnel handling full stacks or placing empty pallets. Simply remove the full stack and replace with an empty pallet on the other side before the stack is completed.
Continuous operation, alternating left/right or right/left with no actual loss of speed. After manually placing empty pallets and pre‑ordering a new stack position, the safety factor is extremely high.
Slightly higher initial investment, but significant potential for future output increase (for 25 kg bagged products with air, max speed 450 cycles/hour; for 25 kg bagged products without air, max speed 500 cycles/hour).

Typical Applications:

Suitable for medium-to-low-speed palletizing production lines with a fan-shaped working area, compact space, and high cycle time requirements. Examples include palletizing bottled water, boxed beverages, food boxes, etc.

Maintenance Guide:

Daily Maintenance FAQ for Palletizers and Depalletizers

To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
