304/316 Stainless Steel Fogging Nozzles, Ruby Impact Misting Nozzles for Misting Systems
Misting Nozzles, Natural Fog Stainless Steel High Pressure Anti Drip Misting Fog Nozzles:
- Standard Orifice Fog Nozzles: Basic atomization for conventional humidification, cooling, dust suppression.
- Long-Stem Anti-Clog Fog Nozzles: Clog-resistant atomization in high-impurity water.
- Flat Fan Spray Fog Nozzles: Directional coverage for dust control, surface humidification.
- Ruby Impact Nozzles: Precision micro-mist control
| Type | 3/16 Screw Thread | 3/16 Screw Thread | 1/8 Screw Thread | 1/8 Screw Thread |
 |
 |
 |
 |
|
| Material | Nickel-Plated Copper | Nickel-Plated Copper | 304/316 Stainless Steel | 304/316 Stainless Steel |
| Standard Models | 0# 1# 2# | 3# 4# 5# | 1# 2# | 3# |
| Orifice Diameter mm | 0.1 0.15 0.2 | 0.3 0.4 0.5 | 0.15 0.2 | 0.3 |
| Droplet Size Distribution | 1-15µm 1-15µm 1-15µm | 1-15µm 1-15µm 1-15µm | 5-15µm 10-25µm | 15-35µm |
| (50KG) Flow Capacity L/min | 0.02 0.04 0.08 | 0.1 0.25 0.26 | 0.08 0.15 | 0.3 |
| (70KG) Flow Capacity L/min | 0.03 0.05 0.09 | 0.11 0.28 0.3 | 0.1 0.18 | 0.5 |
| Orifice Material | Ceramic, Stainless Steel | Ceramic, Stainless Steel | Ceramic, Stainless Steel | Ruby Impact Nozzle |
| Applications | Humidification, Cooling, Dust Suppression | Humidification, Cooling, Dust Suppression | Cooling, Dust Suppression, Artificial Mist Systems | Cooling, Dust Suppression, Artificial Mist Systems |
- Mushroom Misting System
- Landscape Fogging System
- Textile Industrial Fog Humidifiers
- Fogging Dust suppression
- Mosquito Repellent Misting System
- Mini Mist Maker
| Industry | Core Benefits |
|---|---|
| Textiles | Humidity regulation & moisture regain, Static elimination, Reduced yarn breakage |
| Printing/Papermaking | Static neutralization, Dust suppression, Prevention of paper curling, Enhanced product quality |
| Artificial Mist Systems | Particulate matter control, Humidity optimization, Microclimate modification, Aesthetic enhancement |
| Tobacco Processing | Tobacco leaf integrity preservation, Moisture-controlled weight retention |
| Cold Storage (Fruit) | Produce freshness preservation, Texture/crispness maintenance, Weight loss prevention |

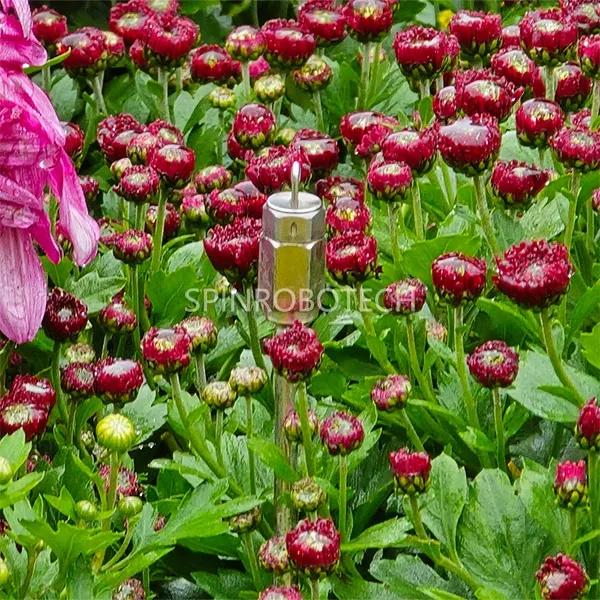

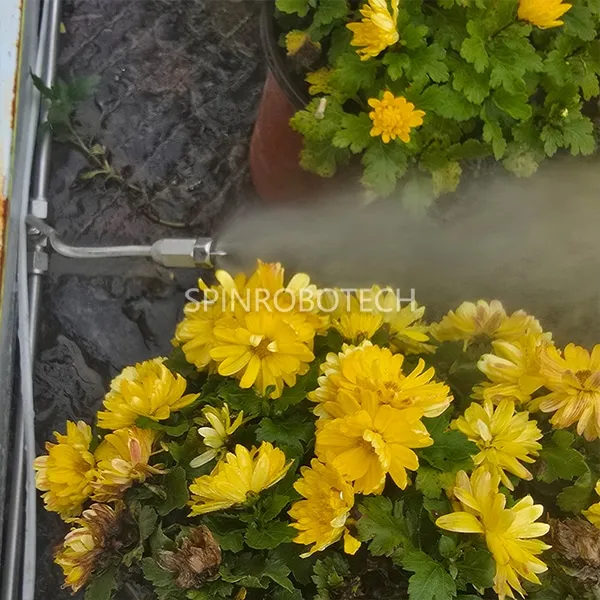

Customer Case Study: The Magical Role of Industrial Fogging System at Chrysanthemum Exhibitions
Industry-Specific Advantages
1. Landscaping & Gardens
Ecological Enhancement: Simulates natural misting for ethereal visual effects around rockeries and water features.
Healthier Environment: Negative oxygen ions reach 1000-5000x urban levels, significantly improving air quality.
Adaptability: Mist disperses naturally without water logging soil structures.
2. Hotel Landscapes
Custom Scenes: Timed misting machine with lighting creates unique experiences (e.g., wedding lawns, pool areas).
Energy Efficiency: PLC systems reduce frequency during off-peak hours, cutting energy use by 28%.
3. Commercial Streets
Foot Traffic Optimization: Cooling extends customer dwell time by 30+%, boosting sales potential.
Eco-Compliance: Captures airborne particles, reducing dust pollution complaints.
4. Mushroom Greenhouses
Disease Prevention: Rapid droplet evaporation inhibits bacterial growth on mushroom caps.
Energy Savings: 6W power consumption per liter mist—1/10th of sprinkler systems.
5. Textile Industry
Production Efficiency: 65%-70% humidity prevents yarn fractures and flying fiber fire hazards.
Cost Control: No compressed air needed—1/20th energy of hybrid systems.
6. Electronics Factories
Component Protection: Neutralizes >10kV static buildup on chips/PCBs.
Cleanroom Compliance: Sealed water circuits prevent Legionella growth.
7. Greenhouse Farming
Microclimate Management: 6℃+ temperature drop in 5 minutes prevents crop sun scald.
Fertigation Integration: Mist delivers liquid fertilizers/pesticides for optimal absorption.
8. Paper Industry
Process Stability: High humidity during calendaring / rolling minimizes paper shrinkage.
Equipment Durability: Ceramic plunger pumps withstand corrosive environments (50k+ hours).
