2-Axis Rotary Column Palletizer, Double Palletizing Workstation Palletizing Machine for 25KG Bagged of Corn Grits

Dual-position Crank Arm Palletizeing Robot for 25kg Bags of Corn Grits, Customized Dual-station 2-Axis Rotating Column Palletizing Machine with special Gripper, High-speed Single Column Palletizing & Depalletizing Machine with CE certiofication. SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Robotic Gripper Palletizer, palletizing depalletizing robot grippers, customized mechanical gripper, Vacuum Suction Gripper, Fork Gripper (Pallet Fork), Magnetic Gripper, Flexible Gripper

CE Certification for Palletizer, Depalletizing Machine, Palletizing Robot, Debagging Machine

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Single column palletizing robot with customized grippers, customized high speed pallet making robots and stacking system as requirements. Spin’s palletizing robot is perfectly suited for a wide range of products:

Food & Beverage: Bags of flour, sugar, pet food; cases of bottles and cans; frozen food boxes.
Chemical & Pharmaceutical: Bags of fertilizer, pellets; boxes of chemicals.
Consumer Goods: Cartons of paper, appliances, and other packaged goods.
Logistics & Warehousing: Unitizing boxes and cases for shipment.

Customizable Features: Cross-arm length, column height, special grippers.

Upgrade Options: VI (visual identity), pallet conveyor line, ton bag lifting mechanism, anti-collapse linkage system.

Inquiry

Description

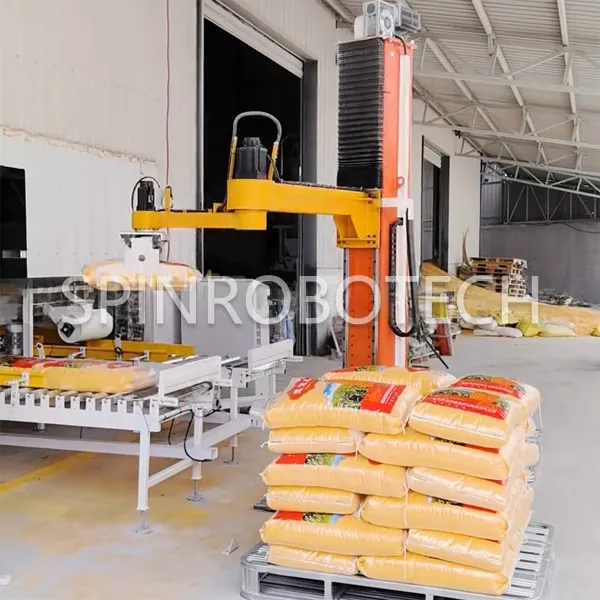

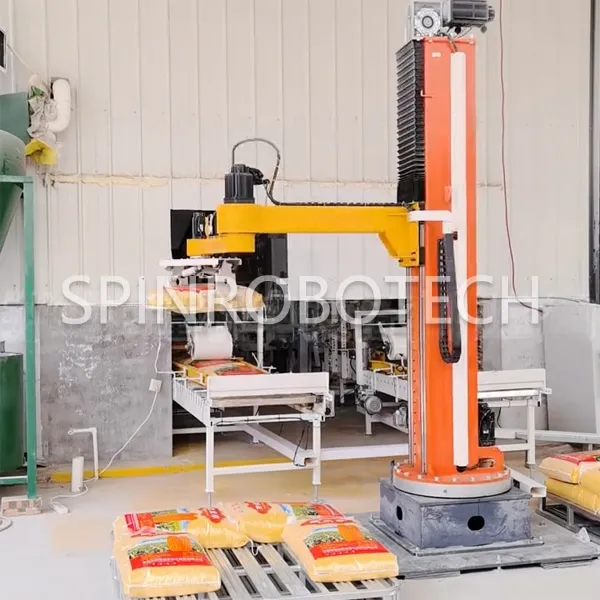

Double Palletizing Workstation Palletizer, Dual-position Crank Arm Palletizeing Robot for 25kg Bags of Corn Grits, Customized Dual-station 2-Axis Rotary Column Palletizer with special Gripper, High-speed Single Column Palletizing & Depalletizing Machine with CE certiofication.

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Standard Parameters of Model MR-200S

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.97-1.6 m³/min Total air reservoir capacity >400 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing & Depalletizing Height Limit	≤1800mm (grippers/fixtures) \| ≤2000mm (suction cups)
Applicable Scope	10-60kg product including: bags, cartons, sheets, blocks, or similar products
Palletizing & Depalletizing efficiency	500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 7.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet size reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision identity, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system

The core advantage of 2-axis rotary column palletizer for palletizing bagged products lies in its extremely high space utilization rate and cost-effectiveness, making it particularly suitable for scenarios with limited space or sensitive investment costs.

Advantages of 2 Axis Palletizing Robot:

Compact structure, cost-effective, suitable for small/medium batches.
Small floor space, typically half that of a robotic arm.
Medium flexibility, stacking patterns can be adjusted via programming.
Medium load capacity, suitable for standard boxes/bags.

We Spin supplies three mainstream palletizing robots: cartesian coordinate robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Automatic Rotary Column Palletizing Robots: The Space-Saving Efficiency Experts

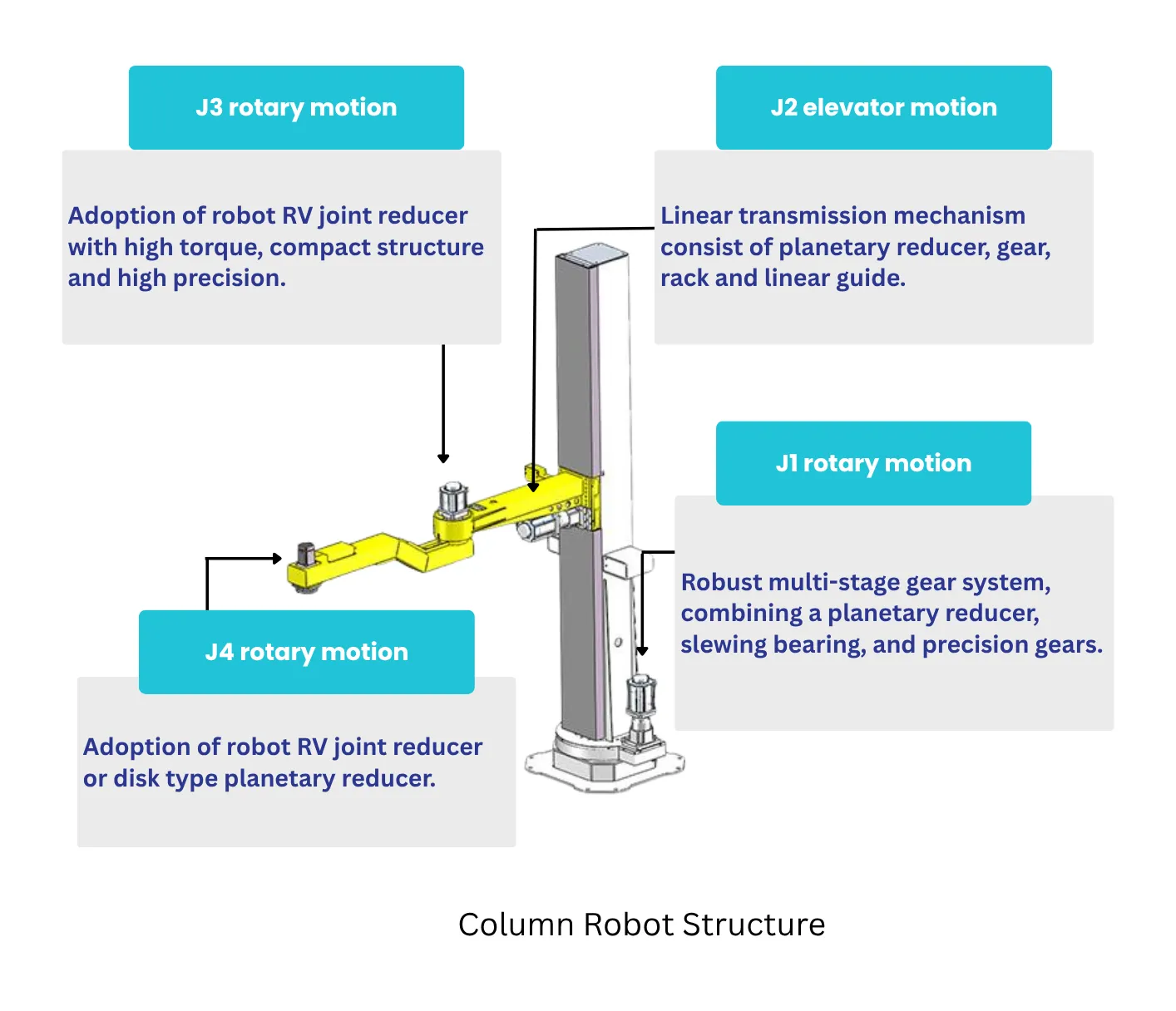

Professional Design:
Also known as SCARA-type or cylindrical coordinate robot. The structure is compact, mainly consisting of a column, a rotating base, a vertically lifting arm, and a horizontally telescoping arm. It integrates 4–6 axis coordinated control and modular design, with high‑precision servo motors driving the joints.

Motion Trajectory:
The working envelope is a cylinder. Through the coordinated motion of the rotating base, the lifting arm, and the horizontal arm, the end effector can reach any point within the cylindrical space. The control system generates optimized motion trajectories based on a preset stacking pattern and employs linear interpolation technology to ensure smooth movements of the robotic arm.

Applicable and Common Scenarios:
The core advantage is its small footprint, making it highly suitable for production workshops with limited space. Thanks to its flexible movement and high precision, it is often used for palletizing medium‑light, regular‑shaped materials in industries. Such as food & beverage (e.g., milk, biscuits), chemicals (e.g., feed, fertilizer), and pharmaceuticals.

Maintenance Guide:

Daily Maintenance FAQ for Palletizers and Depalletizers

To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
