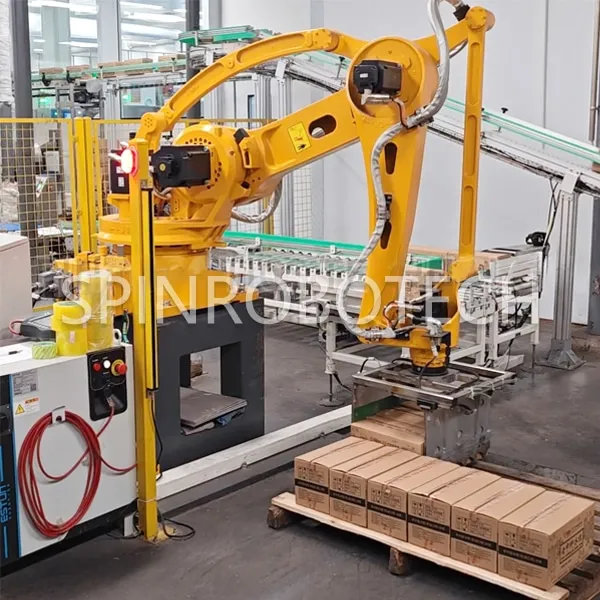

Cold Storage Palletizer, High-precise Articulated Robotic Arm Palletizing Machine for 3.5KG Boxes of Ice Popsicle, with custom grippers, can be CE-certificated.

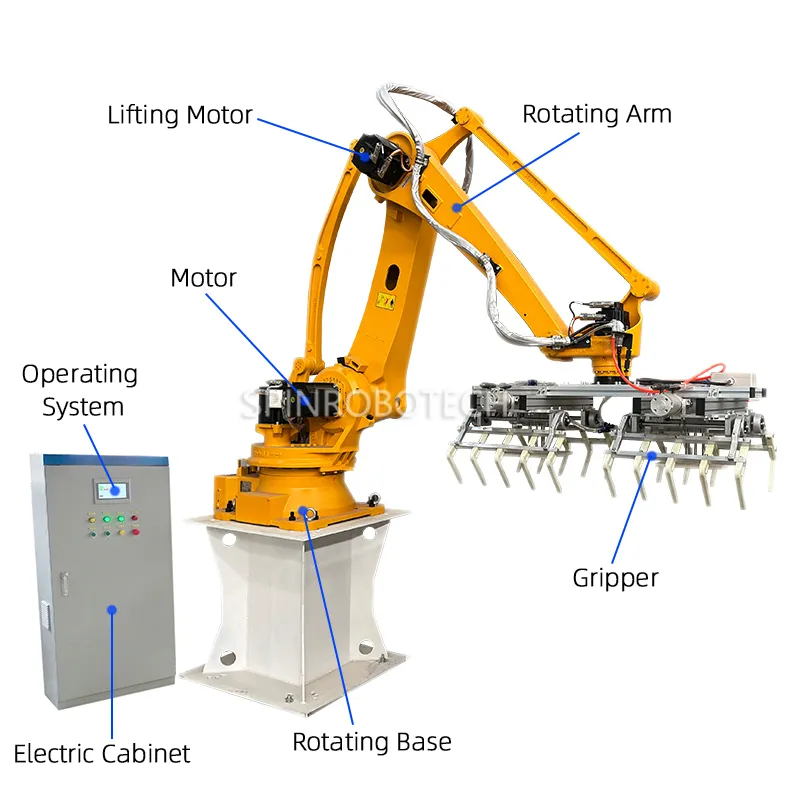

SPIN’s automatic articulated palletizer: The Flexible and Intelligent Solution!
Core Parameter Specification (Based on this recommended series)
| Arm span | 2400mm |
| Repeat positioning accuracy | +0.04mm |
| Maximum load | 120kg |
| Installation method | Ground |
| Degree of protection | IP54 |
| Number of axles | 4 AXIS |
| RANGE OF MOTION | 1 AXIS +180° |
| 2 AXIS -40°~+85° | |
| 3 AXIS -20°~+110° | |
| 4 AXIS +360° | |
| MAXIMUM SPEED | 1 AXIS 105°/s |
| 2 AXIS 110°/s | |
| 3 AXIS 110°/s | |
| 4 AXIS 290°/s | |
| Efficiency | 600 bags/hour |
Core Features of Cold Storage Palletizer
1. Extreme Cold Environment Adaptation
The entire joint system is filled with military-grade ultra-low temperature grease, paired with cold-resistant, anti-embrittlement flexible drag chains. This ensures excellent mechanical performance even in cold storage environments down to -25°C, thoroughly solving common robotic issues such as joint jamming and cable breakage.
2. Intelligent Thermostatic Anti-Condensation Control Cabinet
The control cabinet features a built-in intelligent heating and dehumidification module that automatically detects and regulates the internal ambient temperature. This effectively handles the severe temperature differences during equipment entry and exit from the cold storage, preventing short circuits and damage to the main control board and drives caused by internal condensation.
3. High-Speed Light-Load Palletizing
Specially developed for small packages of 3.5kg and below, the low-inertia design grants the robotic arm extremely high response speed. Its palletizing cycle time far exceeds that of heavy-duty robots, seamlessly connecting with high-speed filling lines to eliminate production line bottlenecks.
4. Graphical Programming & User-Friendly Operation
Eliminating complex underlying code. Workers only need to input simple parameters such as carton dimensions, stack layers, and pallet types on the touch screen, and the robot will automatically calculate the optimal palletizing trajectory. This greatly reduces reliance on intensive cold-storage labor and minimizes training costs.
5. Food-Grade Hygiene & Safety Standards
The structural design is compact and easy to clean, with key components made from rust-proof and anti-corrosion materials. Fully mechanized operation completely eliminates the hygiene cross-contamination risks associated with manual hand-contact palletizing, fully complying with GMP food safety management system requirements.
6. Extremely Low TCO & High ROI
The high-quality hardware, deeply optimized for harsh cold-storage environments, significantly reduces the annual failure rate and repair complexity. One unit can replace 3-4 manual palletizing workers, eliminating costs for extreme-cold subsidies and social insurance, resulting in an exceptionally fast return on investment (ROI) period.
Maintenance Guide:
Daily Maintenance FAQ for Palletizers and Depalletizers
To custom palletizier / depalleting robot / bag opening machine, what we need from you:
| Product Name | (Scientific name of the product) |
| Packaging Form | (Open-top, Valve, Boxed, Sheet, etc.) |
| Product Specification | (kg) |
| Product Dimensions | (Length) × (Width) × (Height) mm |
| Pallet Dimensions | (Length) × (Width) × (Height) |
| Stacking Dimensions | (Length) × (Width) × (Height, including pallet) |
| Stacking Pattern | ______ pieces per layer, ______ layers in total |
