Dual-pick Dual-place Palletizer, Dual-station Column Rotary Palletizing Robot for 6KG-12KG Boxed Water

Dual-pick Dual-place Palletizer, Custom Dual-station Column Rotary Palletizing Machine, Equipped with Custom Integrated Gripper, for 6KG-12KG Boxed Water, with CE certification. SPIN's Column rotating palletizer: Dual-station, continuous operation, no speed loss.

Robotic Gripper Palletizer, palletizing depalletizing robot grippers, customized mechanical gripper, Vacuum Suction Gripper, Fork Gripper (Pallet Fork), Magnetic Gripper, Flexible Gripper

Column Palletizing Robot, Model MR-180 Single Column Rotaty Palletizer, Dual‑lane Palletizing Cell with Two Pallet Stations, Continuous Operation, No Speed Loss, with CE certification

CE Certification for Palletizer, Depalletizing Machine, Palletizing Robot, Debagging Machine

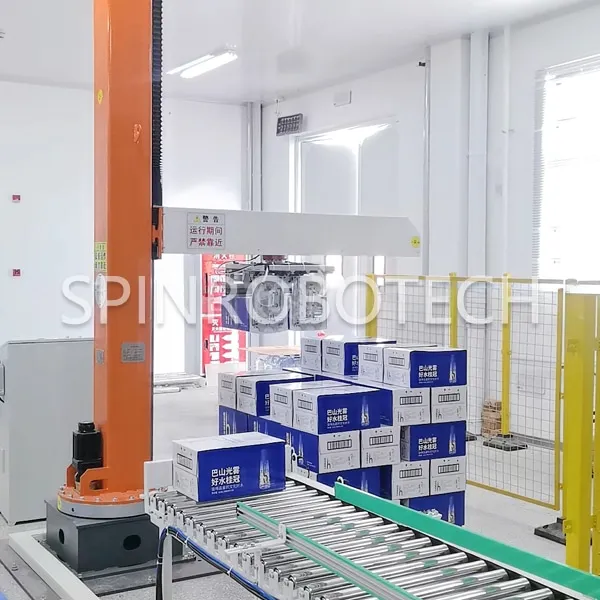

This 6-12KG boxed water palletizing system delivers high efficiency (235 boxes/hour via double-grip), stable 10-layer stacking with a raised column and damage-free custom gripper, and rapid ROI through 24/7 unmanned operation.

Ultimate Throughput & Efficiency
Robust Structure & Space Saving
Customized Handling & Damage Reduction
Cost Reduction & Fast ROI
Seamless Integration & Safety

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Inquiry

Description

Dual-pick Dual-place Palletizer, Custom Dual-station Column Rotary Palletizing Machine, Equipped with Custom Integrated Gripper, for 6KG-12KG Boxed Water, with CE certification.

Product: 6KG – 12KG boxed water

Output: 235 boxes per hour

Stacking Pattern: 10 boxes per layer, 10 layers in total.

SPIN’s Column rotating palletizer: Dual-station, continuous operation, no speed loss.

Core Features of Dual-pick Dual-place Palletizer

Ultimate Throughput & Efficiency

Double-Grip & Dual-Drop Design: The custom gripper handles 2 boxes per cycle. Combined with the rapid rotary column mechanism, it achieves an output of 235 boxes/hour, perfectly matching upstream packaging lines without bottlenecks.
Robust Structure & Space Saving

Raised Column Design: Specifically engineered for high-level palletizing (10 boxes per layer, 10 layers total). It offers superior rigidity with zero swaying, while its compact footprint maximizes valuable floor space.
Customized Handling & Damage Reduction

Heavy-Duty Custom Gripper: Optimized for the 6-12KG weight and cardboard box material, ensuring a secure hold that drastically reduces carton deformation and bottle breakage.
Cost Reduction & Fast ROI

24/7 Unmanned Operation: Replaces high-intensity manual labor (saving 2-3 workers per shift). Clients typically achieve a full return on investment (ROI) within 1 to 1.5 years.
Seamless Integration & Safety

Turnkey System: Highly integrated with the roller conveyor line. Equipped with yellow safety fencing for strict human-machine isolation, ensuring a safe working environment.

Standard Parameters of Model MR-180

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing Height Limit	≤1600mm (grippers/fixtures) ≤1800mm (suction cups)
Applicable Scope	10-50kg product Including: bags, cartons, sheets, blocks, or similar products
Palletizing efficiency	400-500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision recognition, pallet conveyor line ton bag lifting reciprocating mechanism, anti-collapse linkage system

We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Features of Dual-station Rotary Palletizer:

Takes up less floor space than a robotic arm, simple to fix, and flexible in layout.
Operates via a straight-arm rotation method, offering large coverage; safety fences and light curtains are required to improve safety.
Dual-station design: no efficiency or speed requirements for personnel handling full stacks or placing empty pallets. Simply remove the full stack and replace with an empty pallet on the other side before the stack is completed.
Continuous operation, alternating left/right or right/left with no actual loss of speed. After manually placing empty pallets and pre‑ordering a new stack position, the safety factor is extremely high.
Slightly higher initial investment, but significant potential for future output increase (for 25 kg bagged products with air, max speed 450 cycles/hour; for 25 kg bagged products without air, max speed 500 cycles/hour).

Typical Applications:

Suitable for medium-to-low-speed palletizing production lines with a fan-shaped working area, compact space, and high cycle time requirements. Examples include palletizing bottled water, boxed beverages, food boxes, etc.

Maintenance Guide:

Daily Maintenance FAQ for Palletizers and Depalletizers

To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
