Our High-Pressure Micro Mist Humidifier is Featuring extensive humidification coverage and producing fine mist particles of 8-10 microns. Equipped with multi-branch zoning control and smart humidity management, it supports customizable linkage functions. This unit seamlessly integrates with ventilation systems, supplemental lighting, illumination, and air circulation systems—functioning as multiple devices in one.
| Model | WS/18 – WS/50 |
| Motor Power Rating | 3KW – 7.5KW |
| Flow Rate | 18L/MIN – 50L/MIN |
| Humidity Setpoint | 0% – 85%RH |
| Nozzle Quantity | 150pcs – 330pcs(1#) |
| Power Supply Requirements | 3-Phase 5-Wire System |
| Control Interface | Mobile App(if available),Touch Control Panel,; Timer Humidity are controlled manually |
| Protection Features | Dry-run Protection, Earth Leakage Protection, Overload Cut-off, Overload Cut-off, Water Quality Monitoring, Pipe Burst Alarm, Pipe Burst Alarm |
| Dimensions | L×W×H: 960×680×1225MM |
18L–50L misting machines: High Pressure Micro Mist Humidifier
14L | 28L | 42L misting machines: Split-Type Ultrasonic Humidifier
14L | 28L misting machines: Ultrasonic Humidifier
Portable Fogger Machines:
8L | 12L | 18L fogging machines: Landscape Mist Humidifier
6L fogging machines: Landscape Misters
4L fogging machines: Portable Misting Machinery
Mini Ultrasonic Humidifiers: Mist making 2-12 Heads Ultrasonic
Mushroom Misting Humidifier: Suppression Humidification Integrated Unit
Mosquito Repellent Fog Machine: Mosquito Repellent Fog Machine
1.The factory high-pressure micro-mist humidifier is a highly efficient and energy-saving humidity control device widely used in various industrial production environments:
Its core working principle involves using a high-pressure pump to pressurize water to an extremely high level, then ejecting it through specially designed nozzles in the form of ultra-fine mist particles. These tiny mist particles evaporate rapidly, thereby increasing the moisture content in the air to achieve humidity regulation.
2. The advantages of the high-pressure micro-mist humidifier are significant:
Firstly, it boasts high humidification efficiency, capable of significantly increasing air humidity in a short time to meet strict humidity requirements on production lines. Secondly, the equipment has low energy consumption; compared to traditional humidifiers, it consumes less electricity during operation, helping to reduce production costs. Moreover, the mist particles it produces are fine and uniform, minimizing droplet formation and avoiding issues such as equipment corrosion or material dampness caused by excessive humidity. Additionally, the high-pressure micro-mist humidifier features intelligent control functions, automatically adjusting the humidification output based on the actual humidity of the production environment to achieve precise control.
3. In practical applications, factory high-pressure micro-mist humidifiers are widely used across multiple industries including textiles, printing, electronics, and pharmaceuticals.
- In the textile industry, appropriate humidity helps improve fiber flexibility and fabric quality.
- In the printing industry, a stable humidity environment ensures even ink adhesion and enhances print quality.
- In the electronics industry, suitable humidity helps prevent static electricity generation, protecting electronic components from damage.
- In the pharmaceutical industry, high-pressure micro-mist humidifiers are used to maintain constant humidity within clean rooms, ensuring the stability and safety of the drug manufacturing process.
Industry-Specific Advantages

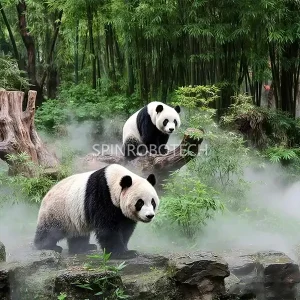

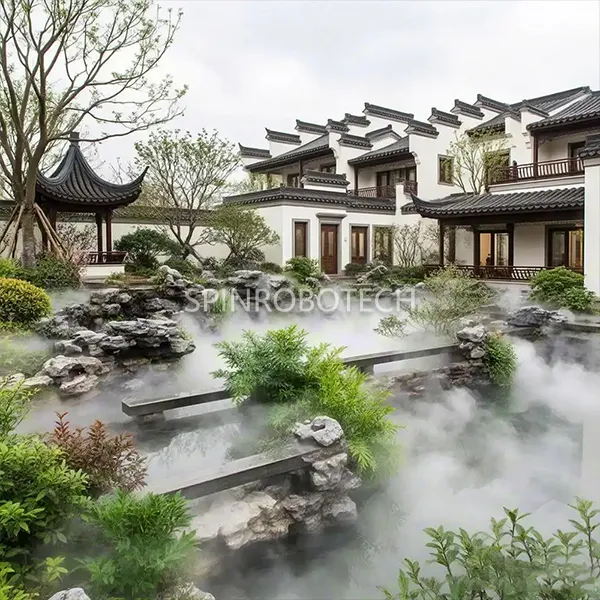

1. Landscaping & Gardens
Ecological Enhancement: Simulates natural mist for ethereal visual effects around rockeries and water features.
Healthier Environment: Negative oxygen ions reach 1000-5000x urban levels, significantly improving air quality.
Adaptability: Mist disperses naturally without waterlogging soil structures.
2. Hotel Landscapes
Custom Scenes: Timed misting with lighting creates unique experiences (e.g., wedding lawns, pool areas).
Energy Efficiency: PLC systems reduce frequency during off-peak hours, cutting energy use by 28%.
3. Commercial Streets
Foot Traffic Optimization: Cooling extends customer dwell time by 30+%, boosting sales potential.
Eco-Compliance: Captures airborne particles, reducing dust pollution complaints.
4. Mushroom Greenhouses
Disease Prevention: Rapid droplet evaporation inhibits bacterial growth on mushroom caps.
Energy Savings: 6W power consumption per liter mist—1/10th of sprinkler systems.
5. Textile Industry
Production Efficiency: 65%-70% humidity prevents yarn fractures and flying fiber fire hazards.
Cost Control: No compressed air needed—1/20th energy of hybrid systems.
6. Electronics Factories
Component Protection: Neutralizes >10kV static buildup on chips/PCBs.
Cleanroom Compliance: Sealed water circuits prevent Legionella growth.
7. Greenhouse Farming
Microclimate Management: 6℃+ temperature drop in 5 minutes prevents crop sunscald.
Fertigation Integration: Mist delivers liquid fertilizers/pesticides for optimal absorption.
8. Paper Industry
Process Stability: High humidity during calendering / rolling minimizes paper shrinkage.
Equipment Durability: Ceramic plunger pumps withstand corrosive environments (50k+ hours).
