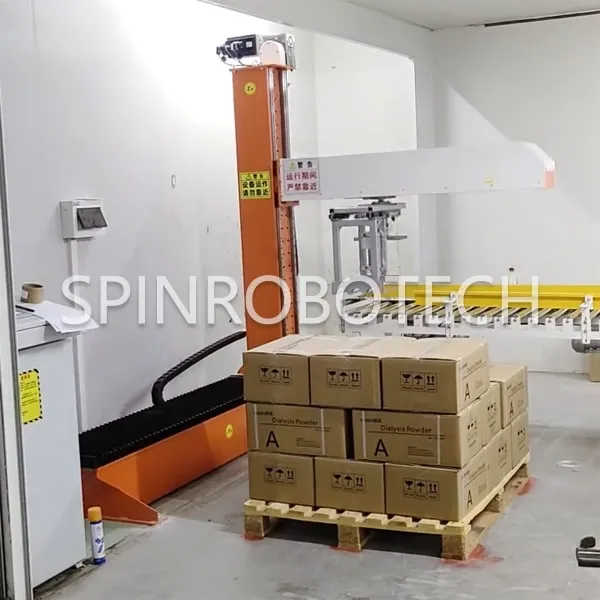

Spin’s PLC-controlled cartesian palletizer is now widely used in many industries that handle large volumes of boxed, bagged, barrelled, or goods to be palletized. Their core value lies in replacing high-intensity, repetitive manual handling with automation.
How to Choose Spin’s Palletizing and Depalletizing Equipment?
Standard Parameters of Model MR-160
| Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.8 MPa, ≥0.3 m³/min
Suction Cups: 0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L |
| Dimensions | Overall height 2.6m, length 2.5m, width 2.1m, footprint 2.5×2.1 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Palletizing Height Limit | ≤1600mm (grippers/fixtures) | ≤1800mm (suction cups) |
| Applicable Scope | 10-50kg product
Including: bags, cartons, sheets, blocks, or similar products |
| Palletizing efficiency | 300-400 cycles/hour (theoretical maximum) |
| Power Consumption | Robot body: 6.5 kW
Shaping conveyor/positioning conveyor: 1.5 kW |
| Pallet reference | ≤1200×1400mm (including actual stack pattern) |
| Customizable item | Cross arm length, column height, base length, special grippers |
| Follow-on upgrade | Vision identity, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system |

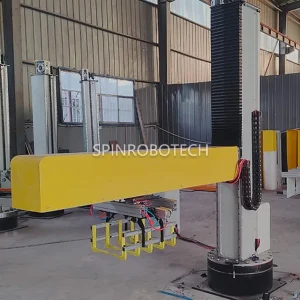

We Spin supplies three mainstream palletizing robots: smart cartesian palletizing machine, column-type robots, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots
Cartesian XYZ Palletizer: The Stable Choice for Precision and Heavy Loads
Professional Design:
Based on the Cartesian coordinate system, adopting a gantry or column-type framework. The core consists of three sets of linear motion units: X-axis (horizontal left/right), Y-axis (horizontal forward/backward), and Z-axis (vertical up/down). To balance the torque caused by long-travel cantilevers, the Y and Z axes often employ dual linear units and dual sliders to ensure motion stability and mechanical rigidity. An optional A-axis (rotation) can be added to handle complex materials, forming a 4-axis configuration.
Motion Trajectory:
The end effector moves only linearly along the X, Y, and Z axes. The trajectory type is simple, completing point-to-point transfers through combinations of three-directional linear displacements. Its working envelope is a precise rectangular or cuboid space.
Applicable and Common Scenarios:
Leveraging high rigidity and heavy load capacity, it is especially suitable for handling heavy, large, and regularly shaped materials. Widely used in industries such as automotive manufacturing, building materials, metallurgy, and heavy machinery. Common scenarios include the handling and palletizing of molds, metal ingots, plates/panels, heavy parts, and other regular-shaped objects.
Maintenance Guide:
Daily Maintenance FAQ for Palletizers and Depalletizers
To custom palletizing robot / depalletizer / bag opening machine, what we need from you:
| Product Name | (Scientific name of the product) |
| Packaging Form | (Open-top, Valve, Boxed, Sheet, etc.) |
| Product Specification | (kg) |
| Product Dimensions | (Length) × (Width) × (Height) mm |
| Pallet Dimensions | (Length) × (Width) × (Height) |
| Stacking Dimensions | (Length) × (Width) × (Height, including pallet) |
| Stacking Pattern | ______ pieces per layer, ______ layers in total |
