Customized Short-Arm Column Palletizer for 300KG Fabric, Automatic Heavy-Duty Rotating Palletizing Machine with CE Certification

Short-Arm Column Palletizer, Customized Short-Arm Heavy-Duty Fabric Depalletizer for 300KG Fabric

Column Palletizing Robot, Model MR-180 Single Column Rotaty Palletizer, Dual‑lane Palletizing Cell with Two Pallet Stations, Continuous Operation, No Speed Loss, with CE certification

Robotic Gripper Palletizer, palletizing depalletizing robot grippers, customized mechanical gripper, Vacuum Suction Gripper, Fork Gripper (Pallet Fork), Magnetic Gripper, Flexible Gripper

CE Certification for Palletizer, Depalletizing Machine, Palletizing Robot, Debagging Machine

Single Column Rotating Palletizing Robot, customized high speed pallet making robots and stacking system as requirements. Spin’s dual-station palletizing robot is perfectly suited for a wide range of products:

Food & Beverage: Bags of flour, sugar, pet food; cases of bottles and cans; frozen food boxes.
Chemical & Pharmaceutical: Bags of fertilizer, pellets; boxes of chemicals.
Consumer Goods: Cartons of paper, appliances, and other packaged goods.
Logistics & Warehousing: Unitizing boxes and cases for shipment.

Customizable Features: Cross-arm length, column height, special grippers.

Upgrade Options: VI (visual identity), pallet conveyor line, ton bag lifting mechanism, anti-collapse linkage system.

Inquiry

Description

Customized Short-Arm Heavy-Duty Rotary Column Palletizer for 300KG Fabric, Equipped Customized Special Gripper, Automatic Single Column Palletizing Machine with CE certification

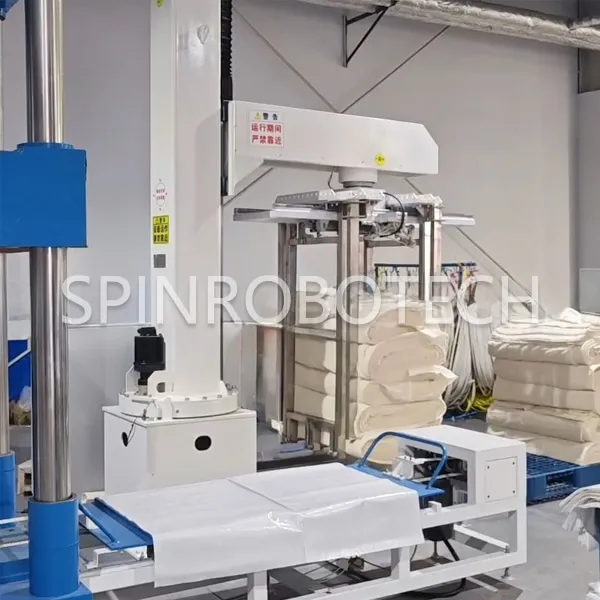

Customized Short-Arm Heavy-Duty Fabric Depalletizer for 300KG Fabric

To see the palletizer in action, click here to watch our YouTube video.

Standard Parameters of Model MR-180

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing Height Limit	≤1600mm (grippers/fixtures) \| ≤1800mm (suction cups)
Applicable Scope	10-50kg product Including: bags, cartons, sheets, blocks, or similar products
Palletizing efficiency	400-500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision recognition, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system

We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Automatic Column-type Rotary Palletizer: The Space-Saving Efficiency Experts

Professional Design:
Also known as SCARA-type or cylindrical coordinate robot. The structure is compact, mainly consisting of a column, a rotating base, a vertically lifting arm, and a horizontally telescoping arm. It integrates 4–6 axis coordinated control and modular design, with high‑precision servo motors driving the joints.

Motion Trajectory:
The working envelope is a cylinder. Through the coordinated motion of the rotating base, the lifting arm, and the horizontal arm, the end effector can reach any point within the cylindrical space. The control system generates optimized motion trajectories based on a preset stacking pattern and employs linear interpolation technology to ensure smooth movements of the robotic arm.

Applicable and Common Scenarios:
The core advantage is its small footprint, making it highly suitable for production workshops with limited space. Thanks to its flexible movement and high precision, it is often used for palletizing medium‑light, regular‑shaped materials in industries. Such as food & beverage (e.g., milk, biscuits), chemicals (e.g., feed, fertilizer), and pharmaceuticals.

Maintenance Guide:

Daily Maintenance FAQ for Palletizers and Depalletizers

To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
