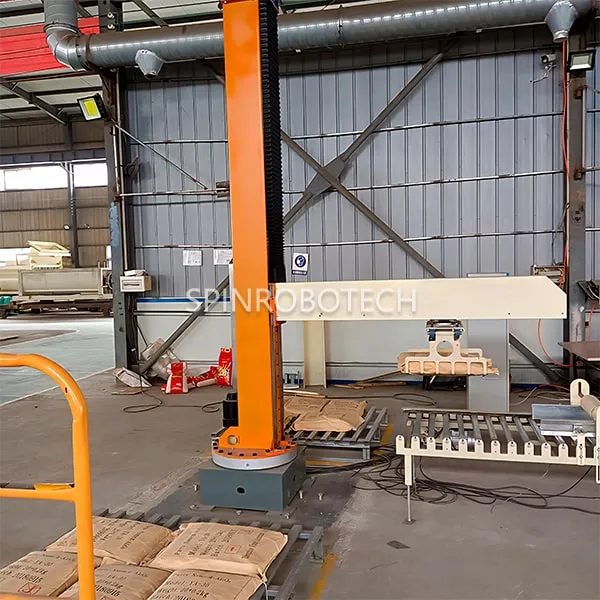

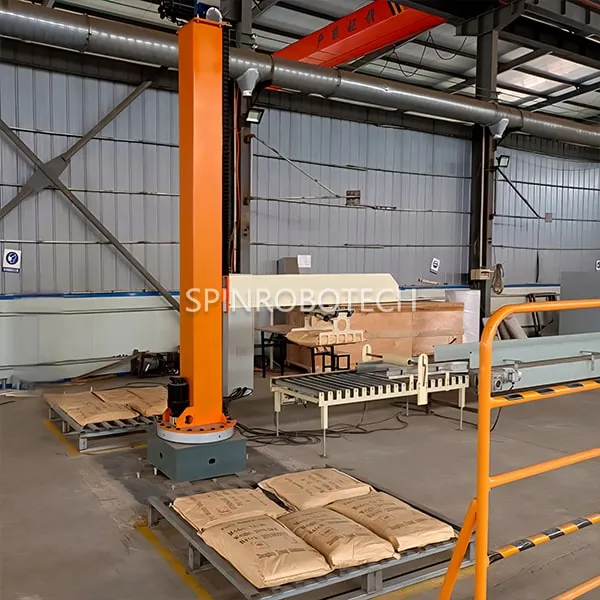

Dual-Station Single Column Palletizer, customized dual‑lane palletizing cell with two pallet stations for 15KG 20KG bags of white sugar, PLC control automatic palletizer with customized grippers, can be CE certificated.
Spin’s dual‑station single column palletizer is now widely used in many industries that handle large volumes of boxed, bagged, barrelled, or goods to be palletized. Their core value lies in replacing high-intensity, repetitive manual handling with automation.
How to Choose Spin’s Palletizing and Depalletizing Equipment?
Standard Parameters of Model MR-180
| Power supply/Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min
Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L |
| Dimensions | Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Palletizing Height Limit | ≤1600mm (grippers/fixtures) | ≤1800mm (suction cups) |
| Applicable Scope | 10-50kg product
Including: bags, cartons, sheets, blocks, or similar products |
| Palletizing efficiency | 400-500 cycles/hour (theoretical maximum) |
| Power Consumption | Robot body: 6.5 kW
Shaping conveyor/positioning conveyor: 1.5 kW |
| Pallet reference | ≤1400×1600mm (including actual stack pattern) |
| Customizable item | Cross arm length, column height, base length, special grippers |
| follow-on upgrade | Vision recognition, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system |
Typical Application:
-
Food & Beverage Industry: Palletizing milk, beverage, and beer cartons; capable of operating in cold storage environments.
-
Chemical & Building Materials Industry: Handling cartons containing chemicals or powders, minimizing human contact risks.
-
Logistics & Warehousing Centers: Efficiently managing the palletizing of multi-variety, small-batch orders to improve warehouse turnover rates.
-
Automotive & Parts Industry: Used for palletizing heavy parts packed in cartons.
We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots
To custom palletizer / depalletizing robot / bag opening machine, what we need from you:
| Product Name | (Scientific name of the product) |
| Packaging Form | (Open-top, Valve, Boxed, Sheet, etc.) |
| Product Specification | (kg) |
| Product Dimensions | (Length) × (Width) × (Height) mm |
| Pallet Dimensions | (Length) × (Width) × (Height) |
| Stacking Dimensions | (Length) × (Width) × (Height, including pallet) |
| Stacking Pattern | ______ pieces per layer, ______ layers in total |
