High-rise building cooling misting system is more like an environmental engineering project aimed at improving human comfort.
Role of High-Rise Building Cooling Misting System (Ambient Air Cooling)
1. Working Principle: Evaporative Cooling
This is the core principle. The high-pressure micro-spray system atomizes water into extremely fine droplets of 1-10 microns. These droplets evaporate rapidly in the air, absorbing a significant amount of heat (water has a high heat of vaporization). This process quickly lowers the ambient air temperature, with a typical reduction range of 3°C to 8°C.
2. Specific Application Methods:
-
Rooftop/Terrace Cooling: Installing spray rings on the rooftop restaurants/bars of commercial complexes or on residential penthouse terraces can effectively lower the perceived temperature in that area, enhancing comfort.
-

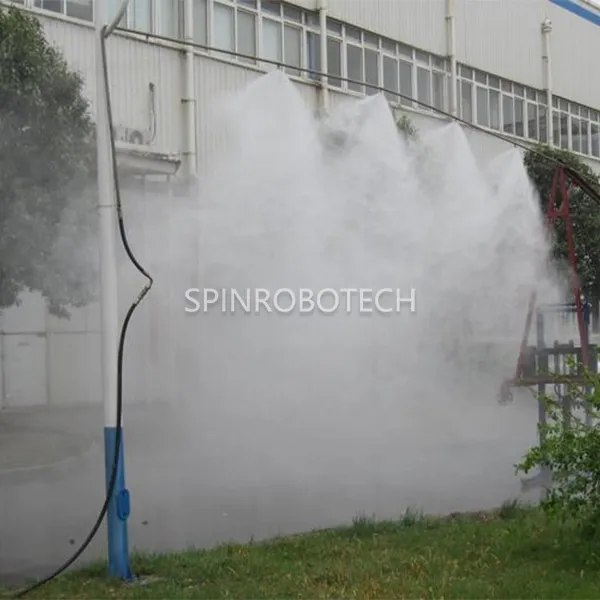

Building Perimeter Cooling: Setting up spray systems on the windward side or at ventilation inlets of some high-rise buildings cools the air before it enters the building, indirectly reducing the indoor temperature.
-
Atrium/Ventilation Shaft Cooling: Utilizing the “stack effect” within a building, spraying mist at the bottom of an atrium or ventilation shaft cools the air, which then rises, promoting air circulation and cooling throughout the entire building.
3. Advantages:
-
Low Energy Consumption: Its power consumption is very low compared to air conditioning systems covering the same area.
-
Increases Ambient Humidity: In arid regions, it simultaneously adds moisture to the air.
-
Green and Eco-friendly: Uses water as the medium, no chemical pollution.
Industry-Specific Advantages
1. Landscaping & Gardens
Ecological Enhancement: Simulates natural misting for ethereal visual effects around rockeries and water features.
Healthier Environment: Negative oxygen ions reach 1000-5000x urban levels, significantly improving air quality.
Adaptability: Mist disperses naturally without water logging soil structures.
2. Hotel Landscapes
Custom Scenes: Timed misting machine with lighting creates unique experiences (e.g., wedding lawns, pool areas).
Energy Efficiency: PLC systems reduce frequency during off-peak hours, cutting energy use by 28%.
3. Commercial Streets
Foot Traffic Optimization: Cooling extends customer dwell time by 30+%, boosting sales potential.
Eco-Compliance: Captures airborne particles, reducing dust pollution complaints.
4. Mushroom Greenhouses
Disease Prevention: Rapid droplet evaporation inhibits bacterial growth on mushroom caps.
Energy Savings: 6W power consumption per liter mist—1/10th of sprinkler systems.
5. Textile Industry
Production Efficiency: 65%-70% humidity prevents yarn fractures and flying fiber fire hazards.
Cost Control: No compressed air needed—1/20th energy of hybrid systems.
6. Electronics Factories
Component Protection: Neutralizes >10kV static buildup on chips/PCBs.
Cleanroom Compliance: Sealed water circuits prevent Legionella growth.
7. Greenhouse Farming
Microclimate Management: 6℃+ temperature drop in 5 minutes prevents crop sun scald.
Fertigation Integration: Mist delivers liquid fertilizers/pesticides for optimal absorption.
8. Paper Industry
Process Stability: High humidity during calendaring / rolling minimizes paper shrinkage.
Equipment Durability: Ceramic plunger pumps withstand corrosive environments (50k+ hours).
18L–50L misting machines: High Pressure Micro Mist Humidifier
14L | 28L | 42L misting machines: Split-Type Ultrasonic Humidifier
14L | 28L misting machines: Ultrasonic Humidifier
Portable Fogger Machines:
8L | 12L | 18L fogging machines: Landscape Mist Humidifier
6L fogging machines: Landscape Misters
4L fogging machines: Portable Misting Machinery
Mini Ultrasonic Humidifiers: Mist making 2-12 Heads Ultrasonic
Mushroom Misting Humidifier: Suppression Humidification Integrated Unit
Mosquito Repellent Fog Machine: Mosquito Repellent Fog Machine
