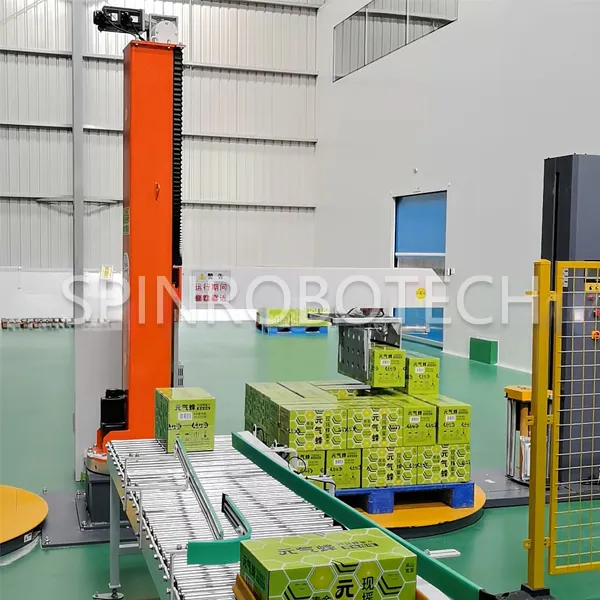

Single Column Rotary Palletizer, Custom Two-Box-One-Grip Palletizer, Equipped with Double Palletizing Station and Wrapping Machine, for 6KG Boxes of Honey Water with CE certification. SPIN's Column rotating palletizer: Dual-station, continuous operation, no speed loss.

Robotic Gripper Palletizer, palletizing depalletizing robot grippers, customized mechanical gripper, Vacuum Suction Gripper, Fork Gripper (Pallet Fork), Magnetic Gripper, Flexible Gripper

Column Palletizing Robot, Model MR-180 Single Column Rotaty Palletizer, Dual‑lane Palletizing Cell with Two Pallet Stations, Continuous Operation, No Speed Loss, with CE certification

CE Certification for Palletizer, Depalletizing Machine, Palletizing Robot, Debagging Machine

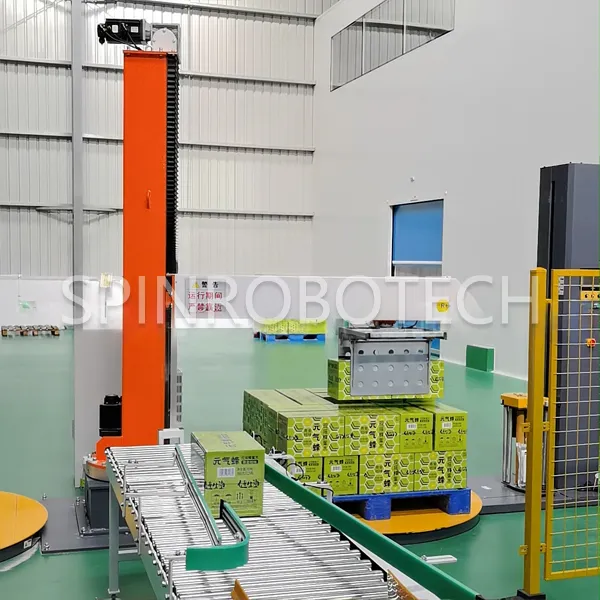

Ratery Dual-station Palletizer, Custom Two-Box-One-Grip Palletizer, Equipped with Double Wrapping Machine, for 6KG Boxes of Honey Water, with CE certification. SPIN's Column rotating palletizer: Dual-station, continuous operation, no speed loss.

This palletizing system, centered on a “Single-Column Rotary Palletizer + Dual Stations + Dual Stretch Wrappers + Pick 2 Boxes at a Time,” is specifically customized for 6KG heavy-duty beverage (honey water) applications.

1. High-Speed Cycle

2. Stable High-Stack

3. Space & Labor Saving

4. Low Failure Rate

5. Flexible Intelligent Control

SPIN’s Rotary Column Palletizer: Dual-station, continuous operation, no speed loss.

Inquiry

Description

Custom Two-Box-One-Grip Palletizer, Equipped with Double Palletizing Station and Wrapping Machine, for 6KG Boxes of Honey Water, with CE certification.

Product: 6kg Boxed Honey Water

Output: 410 boxes per hour

Stacking Pattern: 16 boxes per layer, 6 layers in total.

SPIN’s Column rotating palletizer: Dual-station, continuous operation, no speed loss.

To see the dual-station column palletizer in action, click here to watch our YouTube video.

Core Features of Two-Box-One-Grip Palletizer

1. Ultimate Cycle Time and Zero-Wait Production Line
With the balanced load design of “picking 2 boxes at a time,” perfectly synchronized with dual-station palletizing and 2 stretch wrappers, all waiting time for pallet changing and wrapping is eliminated, achieving a stable high capacity of 410 boxes/hour.

2. Robust High-Stack Heavy-Duty Handling
Equipped with a customized dual-box servo gripper for 6KG heavy boxes, ensuring stable and precise grabbing; it perfectly realizes an ultra-high pallet pattern of 16 boxes per layer, 6 layers total (96 boxes, approx. 576KG). Coupled with high-tension 360° online reinforcement from dual stretch wrappers, it guarantees no collapse during long-distance transport.

3. Ultimate Space Utilization and Cost Efficiency
The single-column rotary structure occupies minimal floor space, cleverly utilizing warehouse height. The entire system replaces the heavy handling and palletizing posts that originally required 3-4 workers, and now only needs 1 person for supervision, significantly reducing labor costs and improving the working environment.

4. Stability, Reliability, and Low Maintenance
Compared with complex 6-axis robotic arms, the single-column rotary structure utilizes pure mechanical movements, featuring a simpler structure, better rigidity, and an extremely low failure rate. Its servo control system offers fast response and high precision, capable of withstanding 24-hour high-load continuous operation. Furthermore, it is extremely easy to maintain later, significantly reducing the Total Cost of Ownership (TCO).

5. Flexible and Intelligent Control
The entire line adopts integrated PLC and touch screen control. By simply setting parameters on the interface, it accurately controls the trajectory and pallet pattern of each “pick 2 boxes” action, adapting to the flexible production needs of different carton sizes.

Standard Parameters of Model MR-180

Power supply/Power	AC 380V±/5% three-phase four-wire
Pneumatic Requirements	Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min Suction Cups: 0.6-0.8 MPa, 0.6-1.1 m³/min Total air reservoir capacity >600 L
Dimensions	Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m²
Cable Length	3m (from robot body to control cabinet)
Palletizing Height Limit	≤1600mm (grippers/fixtures) ≤1800mm (suction cups)
Applicable Scope	10-50kg product Including: bags, cartons, sheets, blocks, or similar products
Palletizing efficiency	400-500 cycles/hour (theoretical maximum)
Power Consumption	Robot body: 6.5 kW Shaping conveyor/positioning conveyor: 1.5 kW
Pallet reference	≤1400×1600mm (including actual stack pattern)
Customizable item	Cross arm length, column height, base length, special grippers
follow-on upgrade	Vision recognition, pallet conveyor line ton bag lifting reciprocating mechanism, anti-collapse linkage system

We Spin supply three mainstream palletizing robots: cartesian coordinate XYZ robots, column-type palletizer, and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

Features of Dual-station Rotary Palletizer:

Takes up less floor space than a robotic arm, simple to fix, and flexible in layout.
Operates via a straight-arm rotation method, offering large coverage; safety fences and light curtains are required to improve safety.
Dual-station design: no efficiency or speed requirements for personnel handling full stacks or placing empty pallets. Simply remove the full stack and replace with an empty pallet on the other side before the stack is completed.
Continuous operation, alternating left/right or right/left with no actual loss of speed. After manually placing empty pallets and pre‑ordering a new stack position, the safety factor is extremely high.
Slightly higher initial investment, but significant potential for future output increase (for 25 kg bagged products with air, max speed 450 cycles/hour; for 25 kg bagged products without air, max speed 500 cycles/hour).

Typical Applications:

Suitable for medium-to-low-speed palletizing production lines with a fan-shaped working area, compact space, and high cycle time requirements. Examples include palletizing bottled water, boxed beverages, food boxes, etc.

Maintenance Guide:

Daily Maintenance FAQ for Palletizers and Depalletizers

To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:

Product Name	(Scientific name of the product)
Packaging Form	(Open-top, Valve, Boxed, Sheet, etc.)
Product Specification	(kg)
Product Dimensions	(Length) × (Width) × (Height) mm
Pallet Dimensions	(Length) × (Width) × (Height)
Stacking Dimensions	(Length) × (Width) × (Height, including pallet)
Stacking Pattern	______ pieces per layer, ______ layers in total
