Custom column-type unpacking machine, Depalletizing Bag Slitting Machine, Automatic 25kg plastic granule bag slitting and discharging system, with CE certification.
Product: 25kg bagged plastic particle
Output: 100 bags/hour
SPIN’s Column Crank Arm Palletizer & Depalletizer: Flexible articulated arm, strong impact resistance, ideal for bag breaking and feeding.
> To see the palletizer in action, click here to watch our YouTube video.

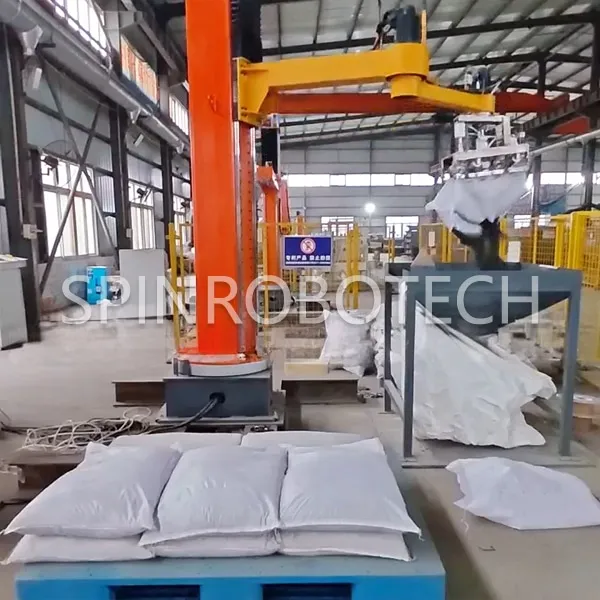

This 25KG plastic pellet unpacking machine is a fully automated bag opening and discharging solution designed specifically for chemical, plastic, and building material industries. As shown in our commissioning site photo, the column-type cantilever robotic arm structure offers a compact footprint, wide 360° rotation, and flexible adaptability to various feeding points in your factory.
Core Features of Column Unpacking Machine
-
Rotary Cantilever Robotic Arm: Supported by a sturdy column base, the arm handles 25kg standard bags with smooth operation, transporting them gently yet precisely to the breaking area.
-
Bag-breaking Hopper (Bag Slitter): Features an enclosed design with an integrated cutting mechanism (sharp blades/knives) that swiftly opens the bags while ensuring 100% material discharge, achieving perfect “bag-material separation”.
-
Dust-free Design: Comes with a standard dust collection port that connects to your factory’s centralized dust extraction system, completely eliminating dust emissions during the unpacking process and protecting operators’ health.
Standard Parameters of Model MR-200S
| Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min
Suction Cups: 0.6-0.8 MPa, 0.97-1.6 m³/min Total air reservoir capacity >400 L |
| Dimensions | Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Depalletizing Height Limit | ≤1800mm (grippers/fixtures) | ≤2000mm (suction cups) |
| Applicable Scope | 10-60kg product
including: bags, cartons, sheets, blocks, or similar products |
| Depalletizing efficiency | 500 cycles/hour (theoretical maximum) |
| Pallet size reference | ≤1400×1600mm (including actual stack pattern) |
| Customizable item | Cross arm length, column height, base length, special grippers |

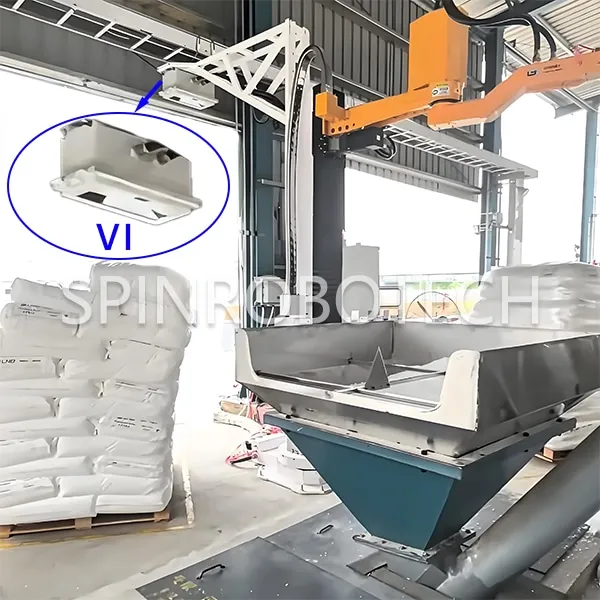

| follow-on upgrade | Vision identity, pallet conveyor line, ton bag lifting reciprocating mechanism, anti-collapse linkage system |
SPIN’s Column Crank Arm Palletizer & Depalletizer: Flexible articulated arm, strong impact resistance, ideal for bag breaking and feeding.
Maintenance Guide:
Daily Maintenance FAQ for Palletizers and Depalletizers
To custom palletizing machine / depalletizing robot / bag opening machine, what we need from you:
| Product Name | (Scientific name of the product) |
| Packaging Form | (Open-top, Valve, Boxed, Sheet, etc.) |
| Product Specification | (kg) |
| Product Dimensions | (Length) × (Width) × (Height) mm |
| Pallet Dimensions | (Length) × (Width) × (Height) |
| Stacking Dimensions | (Length) × (Width) × (Height, including pallet) |
| Stacking Pattern | ______ pieces per layer, ______ layers in total |
