Cartesian Coordinate Robot ML-160 Palletizer, Automatic Heavy-Duty Palletizing Robots

Cartesian Coordinate Robot, also known as a linear motion robot or gantry robot, its movement is based on the classic X, Y, and Z linear axes, similar to a precision gantry crane or 3D printer.

For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

For more cartesian coordinate robot’s customer case , click here: Customer Case Study: How Three Types of Palletizing Robots Help Different Industries Achieve Automation Upgrade

Functional Characteristics of Cartesian Coordinate Robot:

• Motion Method: It can only perform linear movements along three mutually perpendicular directions. Its motion trajectory consists of rigid “polygonal lines.”

• Load Capacity: It has a strong load capacity and can be customized to handle heavy objects weighing several hundred kilograms or even tons for palletizing tasks.

• Precision and Speed: Its motion is simple and direct, providing high positioning accuracy. However, due to the inertial effects of linear acceleration and deceleration, its speed is generally slower compared to other types of robots.

• Workspace: Its workspace is a large rectangular cuboid. The size of the workspace can be easily expanded by lengthening the guide rails, making it highly suitable for covering long production lines.

Advantages:

• Simple structure, high stability, and relatively easy maintenance.

• High load capacity, suitable for heavy material palletizing.

• Strong scalability, capable of achieving very large working ranges.

• Simple control and intuitive programming.

Disadvantages:

• Requires a large installation area due to its substantial footprint.

• Limited flexibility, as it can only operate within the rectangular area covered by its rails and cannot navigate around obstacles.

• Relatively slower speed.

Typical Applications:

• Palletizing heavy materials in long production lines with uniform product specifications, simple stacking patterns, and low flexibility requirements. Examples include building materials (tiles, panels), bagged feed/fertilizers, and large boxed goods.

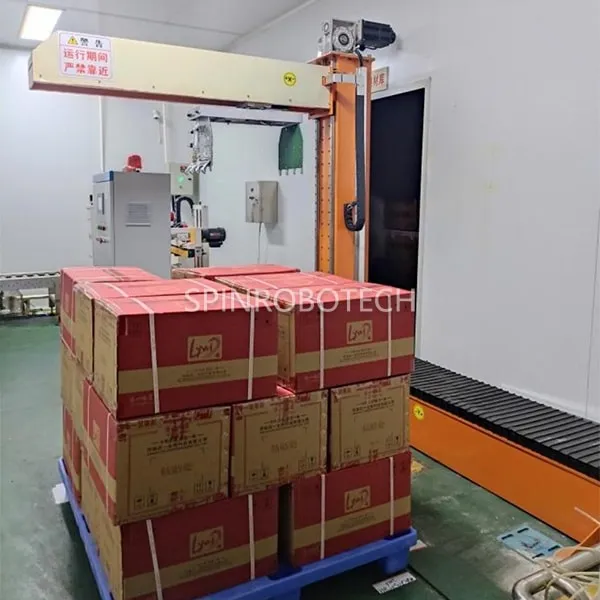

Customer Case Study: Cartesian Palletizing Robot in Four Industries
