Automatic column palletizing packaging line, which integrate column-type palletizing robots, automatic conveying systems, and pallet warehouses, can indeed bring significant improvements to production lines. Their core advantages lie in optimizing space, enhancing efficiency, ensuring stability, and flexibly adapting to production changes.
Advantages of Automatic Column Palletizing Packaging Line
- High-Efficiency Palletizing & Space Optimization: The column-type structure has a small footprint, is suitable for high-level palletizing, and optimizes warehouse utilization. Fully automated line operation enables continuous running, significantly boosting overall output.
- Cost Savings & Return on Investment: Robots can operate 24/7, leading to long-term labor cost savings and reduced losses due to human error. Simultaneously, high-precision control effectively reduces packaging material consumption.
- Stability, Reliability & Quality Assurance: Utilizes full servo drives and advanced control systems to ensure neat and stable palletizing, reducing the risk of cargo damage. Automated packaging also guarantees the stability of each pallet load.
- Flexibility & Intelligent Control: Can quickly adapt to new palletizing tasks through reprogramming and flexibly change end-of-arm tools (EOAT) based on product specifications. The intelligent control system allows flexible setting of various parameters.
- Seamless Integration at the End of the Line
We Spin supplies three mainstream palletizing robots: cartesian coordinate robots, column-type rotary palletizer robots (also called polar coordinate robot), and articulated robotic arms. For detailed information on the three palletizing machine types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots

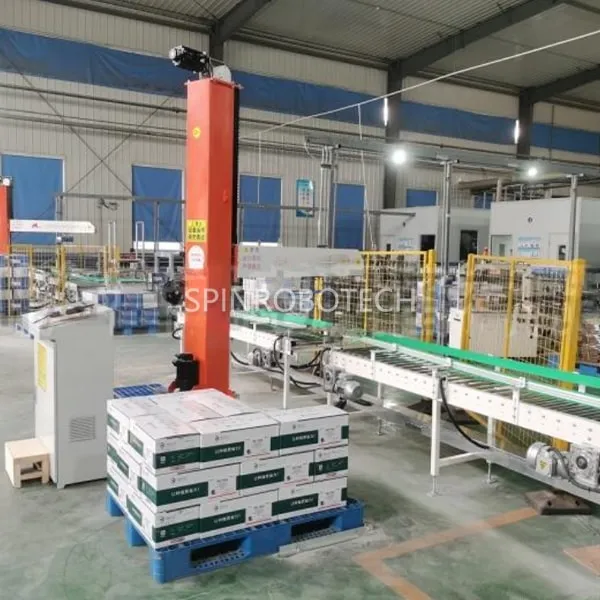

Column-Type Rotary Palletizing Robot, also known as a polar coordinate robot. It combines rotational and linear movements, and its structure typically consists of a base column (enabling rotation), an arm that can extend and retract vertically (enabling radial expansion and contraction), and an end effector.
For more column rotary palletizing robot psystem’s customer case, click here: Customer Case Study: How Three Types of Palletizing Robots Help Different Industries Achieve Automation Upgrade
Features:
-
Motion Method: Generally comprises two types of motion:
-
Column rotation (θ-axis): The base drives the entire arm to rotate.
-
Radial extension (R-axis): The robot arm can extend forward or retract.
-
Vertical lifting (Z-axis): The end effector can move up and down.
Its motion trajectory covers any point within a cylindrical space centered on the column.
-
-
Load Capacity: Moderate load capacity, typically between that of Cartesian and articulated robots, making it suitable for medium-to-low load palletizing tasks.
-
Precision and Speed: Fast operation, smooth movement, and short cycle times.
-
Workspace: The workspace is a cylindrical sector area, striking a good balance between footprint and coverage range.
Advantages:
-
Small footprint (only one base) but large working range, offering extremely high space utilization.
-
High speed, short cycle times, and high efficiency.
-
Cost-effective, providing high value for money in suitable applications.
Disadvantages:
-
Dead zones exist in the working range, where positions too close (near the column) or too far (at the arm’s limit) cannot be reached.
-
Load capacity is inferior to large Cartesian robots.
-
Precision may slightly decrease as the arm extends.
Typical Applications:
- Suitable for medium-to-low-speed palletizing production lines with a fan-shaped working area, compact space, and high cycle time requirements. Examples include palletizing bottled water, boxed beverages, food boxes, etc.
