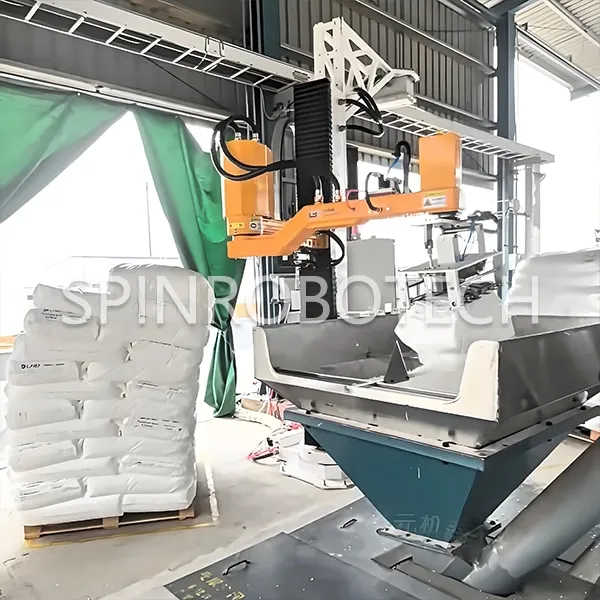

Spin’s automatic column debagging machine is widely applicable to industries such as plastics, chemicals, food, pharmaceuticals, and construction that require high-volume discharging of bagged powder and granular raw materials.
Debagging Machines: The Efficiency Revolution and Core Advantages in Multi-Industry Applications
How to Choose Spin’s Palletizing and Depalletizing Equipment?
| Power supply/Power | AC 380V±/5% three-phase four-wire |
| Pneumatic Requirements | Grippers/Fixtures: 0.6-0.8 MPa, ≥0.3 m³/min
Suction Cups: 0.6-0.8 MPa, 0.97-1.6 m³/min, total air reservoir capacity >400 L |
| Dimensions | Overall height 3m, rotation coverage radius 2.5m, footprint 5×3 m² |
| Cable Length | 3m (from robot body to control cabinet) |
| Height of the Stack | ≤1600mm (depalletizing) |
| Applicable | 10-50kg bulk bag granular products (plastic pellets, rice, white sugar, and industrial salt) |
| Efficiency | 80-120 bags/hour (theoretical maximum) |
| Power | Robot body: 7.5 kW |
| Pallet reference | ≤1400×1600mm (including actual stack pattern) |
| Customizable item | Cross arm length, column height, special grippers |
| follow-on upgrade | 3D Vision Camera (visual identity), Pallet Conveyor Line, Shuttle Rack System |
(These are standard sizes for MR-200S, all parameters can be customized)

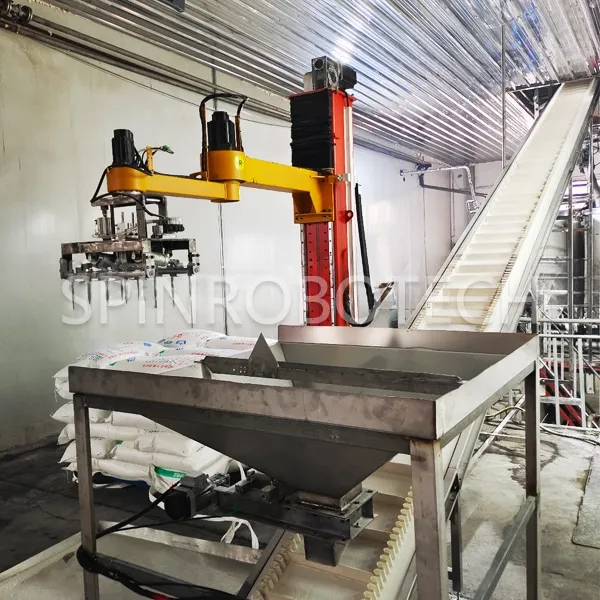

Customization Cases for MR-200S: Customer Case: Customized Depalletizing and Debagging Machine for Romania Client; Customer Case: Customized High-speed Debagging Machine for 50KG Bags of White Sugar, with 3D Vision Camera
Key Advantages of Column Debagging Machine:
- Significant Efficiency Improvement
- Enhanced Safety
- Environmental Protection and Cleanliness
- Flexibility and Intelligence
- Better Overall Cost Efficiency
Typical Scenarios:
- Chemical Industry: Plastic pellets (PP/PE), fertilizers, resins, dyes, coatings, and other powder/granular materials
- Food and Beverage: Flour, feed, grains, beer, milk powder, additives, etc.
- Building Materials: Cement, putty powder, quartz sand, etc.
- New Energy and New Materials: Lithium battery cathode/anode materials, carbon powder, metal oxides, etc.
- Pharmaceuticals and Fine Chemicals: APIs, intermediates, food additives, pesticides, etc.
We Spin supplies three mainstream palletizer and automatic depalletizing robot: cartesian coordinate robots, column-type robot, and articulated robotic arms. For detailed information on the three palletizing machine and depalletizer types, click here: Automated Palletizing Solutions: A Complete Guide to Cartesian, Column-Type, and Articulated Robots
Spin’s automatic depalletizers are now widely used in many industries that handle large volumes of boxed, bagged, or palletized goods. Their core value lies in replacing high-intensity, repetitive manual handling with automation.
Start Your Custom Palletizer / Depalletizer Journey
–What We Need from You:
-
3-5 samples of your typical packaging
-
Target throughput (pallets/hour)
-
Biggest pain point with current methods
